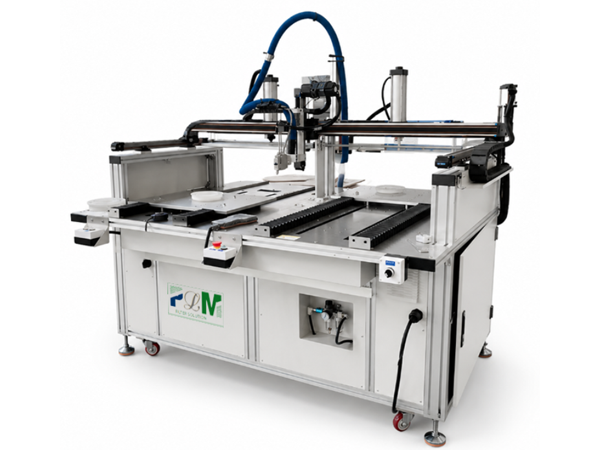

PLZK-600-800-2 Initial Effect Paper Frame Glue Machine

Specification

Product Name	PLZK-600-800-2
Working Stations	2
Working Stroke Per Station	600 × 450 × 100 mm
Maximum Speed	600 mm/s
Maximum Load	30 kg
Programming	Teach pendant
Transmission	Timing belt and ball screw

Motor	Precision servo motor
Repeat Positioning Accuracy	±0.02 mm
Power Supply	220 V, 800 W
Working Temperature	5–40 °C
Machine Dimensions	1500 × 1050 × 1600 mm
Machine Weight	220 kg

Components

Dual working stations
Automatic glue dispensing system
Filter positioning fixtures
Servo motion system
Teach pendant control system
Pressing and holding system

Features

Dual-station design improves production efficiency.
Programmable glue paths for different filter sizes.
Servo control ensures precise and uniform glue dispensing.
Easy operation with stable performance.

Applications

Used for automatic edge glue dispensing and pressure holding of HEPA paper frame filters, primary paper frame filters, and other rectangular panel filters.
