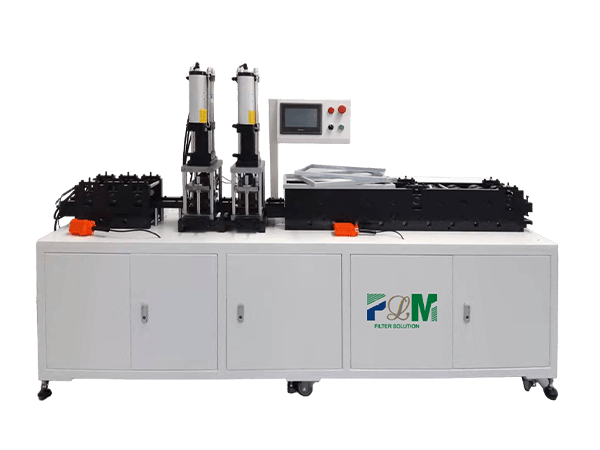

PLM-BF-0301 Automatic Outer Frame Forming Machine

A set of PLM-BF-0301 automatic outer frame forming machine.
Specification
Production speed 120–150 groups/hour
Width range 20–96 mm (single machine produces a single width)
Length range 265–1200 mm
Machine power 5.5 kW
Air consumption 40 L/min
Power supply three-phase 380 V four-wire
Overall dimensions 2500 × 500 × 1500 mm
Equipment weight 840 kg
Features
  • Accurate length control, error within 1 mm
  • Variable frequency motor control, adjustable speed
  • Human-machine control, simple and intuitive
  • With counting and detection function
  • Comes with automatic feeding rack
Applications

Mainly used for molding the outer frame of bag filters

Video
Downloads

To protect the documents privacy, please contact us to get the download password: info@pmfiltersolution.com
