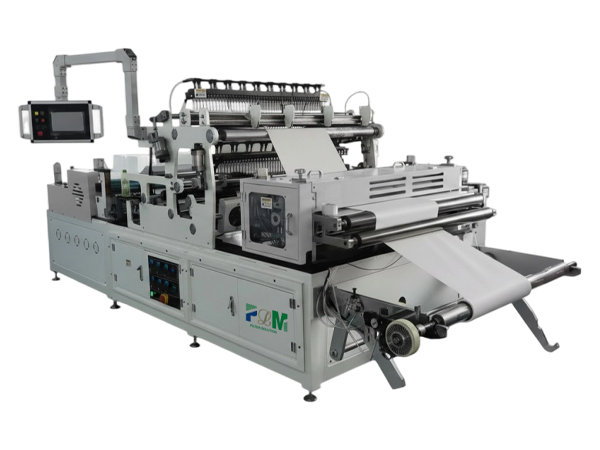

PL-AUTO55-1050FM Automatic Four-generation Folding Machine

A set of PL-AUTO55-1050FM Automatic Four-generation Folding machine
Specification
Product Name PL-AUTO55-1050FM
Max Width 1050 mm
Adjustable Pleating Height 4–100 mm
Pleating Speed 0–220 pleats/min
Power Supply 380 V / 50 Hz
Motor Power 5 kW
Preheating Power 16 kW
Heating Temperature Normal–250 °C
Working Air Pressure 0.6 MPa
M/C Weight 700 kg
M/C Size (L × W × H) 2600 × 1800 × 1800 mm
Advantages
  • Precise control technology. PL-AUTO55-1050FM adopts advanced upper and lower knife alternating folding technology, which is automatically adjusted by the computer to meet various precise sizes and high-standard folding requirements.
  • Versatility. The machine has automatic dot counting, folding processing and preheating forming functions to meet different production needs.
  • Wide application. Suitable for filter papers of various materials, including single-layer and multi-layer, it is an ideal choice for the automotive, hydraulic, purification and water treatment industries.
  • Innovative design. The folding knife angle is variable to ensure that no filter material is damaged during the folding process, improving product quality.
  • Improve efficiency. Quick-change settings and easy-to-use interface make production lines more efficient, reduce downtime and increase output.
Features
  • The folding machine adopts upper and lower knife alternatively perform folding, from the knife automatic adjustment by computer, can reach different fold higher requirements and accurate size.
  • In the paper folding machine automatic dotting counter, folding processing and preheating and forming etc.
  • This machine can also be folded all the different rules of fold change.
  • Folding knife of this machine can change any angle, ensure the folding does not damage any kind of filter material.
Applications

This production line is suitable for the automobile industry three, hydraulic industry, purification industry, the water treatment industry.
