Plastic Molds for Efficient Air Filter Molding

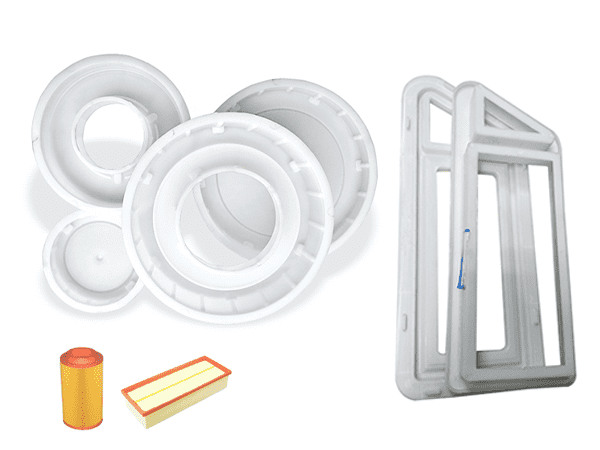

Plastic molds are widely used for PU frame molding in the PU air filter production. It can increase production efficiency and is flexible to match almost all of PU air filter models.

We have several standard plastic molds for you to produce popular PU air filters at the market, special molds can be customized according to your requirements or original part number.

Material: PP
Color: white
Technology: injection molding
Dimension: just supply the original part number of air filter.
Application: for PU air filter molding.

A set of PU-20F air filter pu glue injection machine

Specifications

LMR Type

Two set of LMR plastic molds and a PU air filter.

LMR Type

Remark: The follow information is for reference only. Please consult our sales staff for specific selection.

Brand	Original Part Number	Dimension L × W × H (mm)
BMW	13721707050	256 × 149 × 57
BMW	13721730946	243 × 178 × 58
BMW	13721726916	328 × 150 × 57
BMW	13721702907	286 × 150 × 57
BMW	13712243783	576 × 166 × 49
BMW	13712245401	393 × 166 × 41
BMW	13721247405	236 × 235 × 42
FORD	1S719601AA	340 × 143 × 50
FORD	E6AZ9601B	285 × 157 × 30
FORD	F3XY9601A	276 × 169 × 40
FORD	FA1658	222 × 193 × 57
FORD	FA1679	311 × 166 × 42
GM	25062071	254 × 212 × 57
GM	4213583	275 × 134 × 39
GM	83500999	277 × 227 × 54
GM	4573031	318 × 180 × 37
GM	25096932	270 × 203 × 43
GM	835615	340 × 206 × 43
GM	24508572	270 × 201 × 42
GM	25062434	309 × 230 × 27
GM	834264	309 × 230 × 29
GM	90531003	292 × 234 × 43
GM	835622	292 × 234 × 43
GM	25062227	287 × 185 × 42
GM	834296	287 × 185 × 42
GM	90486296	212 × 166 × 39
GM	90448737	262 × 242 × 38
GM	835617	262 × 244 × 58
GM	25097919	359 × 106 × 43
GM	25099735	274 × 166 × 38
GM	25098845	194 × 153 × 42
GM	25042562	406 × 201 × 42
GM	25313348	311 × 246 × 50
GM	835609	263 × 245 × 27
HYUNDAI/KIA	2811322010	234 × 156 × 45
HYUNDAI/KIA	2811322600	250 × 170 × 43
HYUNDAI/KIA	2811323001	260 × 180 × 39
HYUNDAI/KIA	281132D000	256 × 174 × 41
HYUNDAI/KIA	0K55223603A	306 × 198 × 57
HYUNDAI/KIA	0K2A513Z40A	332 × 171 × 39
HYUNDAI/KIA	0K30C13Z40A	270 × 144 × 40
HYUNDAI/KIA	0K20113Z00	255 × 156 × 40
ISUZU	8941516143	283 × 165 × 34
MAZDA	B33G13Z40	239 × 147 × 38
MAZDA	E5D323603	230 × 194 × 45
MAZDA	PN1113Z40	338 × 138 × 34
MAZDA	HE1923603	249 × 168 × 39
MERCEDES BENZ	0010947804	395 × 295 × 82
MERCEDES BENZ	6010940004	287 × 170 × 50
MERCEDES BENZ	6020940104	379 × 170 × 58
MERCEDES BENZ	6020940404	228 × 221 × 60
MERCEDES BENZ	6040940004	294 × 228 × 57
MERCEDES BENZ	0030946104	332 × 156 × 44
MERCEDES BENZ	0030946804	338 × 100 × 58
MERCEDES BENZ	1120940004	355 × 135 × 50
MERCEDES BENZ	0030947104	306 × 171 × 59
MERCEDES BENZ	6380900051	330 × 265 × 70
MERCEDES BENZ	1110940304	517 × 86 × 58
MERCEDES BENZ	1110940204	463 × 86 × 70
MERCEDES BENZ	6610944504	266 × 192 × 60
MITSUBISHI	MR127077	340 × 168 × 47
MITSUBISHI	MR127078	343 × 168 × 58
NISSAN	16546V0100	281 × 166 × 35
NISSAN	1654673C10	229 × 169 × 35
NISSAN	165467S000	288 × 245 × 37
NISSAN	165460B000	276 × 185 × 42
NISSAN	16546000AC	316 × 262 × 42
OPEL	834358	254 × 212 × 57
OPEL	834288	254 × 213 × 42
OPEL	834297	287 × 185 × 43
PEUGEOT	144486	298 × 101 × 49
PEUGEOT	1444A9	325 × 156 × 58
PEUGEOT	1444F3	325 × 156 × 58
PEUGEOT	1444H0	207 × 170 × 60
PEUGEOT	1444H3	206 × 169 × 84
PEUGEOT	1444W9	379 × 139 × 50
PEUGEOT	1444K8	334 × 134 × 57
RENAULT	7701409312	290 × 135 × 47
RENAULT	7701036270	296 × 86 × 42
RENAULT	7701042841	209 × 101 × 49
RENAULT	7700699068	384 × 115 × 57
RENAULT	7701047285	314 × 101 × 42
RENAULT	7701044595	316 × 262 × 42
RENAULT	7700678752	345 × 115 × 56
RENAULT	7701047417	282 × 151 × 50
RENAULT	7700111834	234 × 194 × 60
RENAULT	8200023480	375 × 82 × 57
VOLVO	30850831	342 × 169 × 41
VOLVO	53004383	342 × 169 × 41
VOLVO	9161033	287 × 213 × 45
VOLKSWAGEN	058133843	254 × 212 × 57
VOLKSWAGEN	7M0129620A	314 × 213 × 60

+ Read All - Read Less

LMT Type

Two set of LMT plastic molds and a PU air filter.

LMT Type

Remark: The follow information is for reference only. Please consult our sales staff for specific selection.

Brand	Original Part Number	Dimension L × W1 × W2 × H (mm)
RENAULT	7701045724	177 × 140 × 98 × 75
PEUGEOT	1444H9	272 × 202 × 110 × 58

LMO Type

Several set of LMO plastic molds and a PU air filter.

LMO Type

Remark: The follow information is for reference only. Please consult our sales staff for specific selection.

Brand	Original Part Number	Dimension OD × ID × H (mm)
BMW	13721257764	315 × 242 × 51
GM	25040929	247 × 207 × 77
GM	25062419	265 × 202 × 53
GM	93152533	237 × 184 × 50
MAZDA	F80123603	282 × 215 × 57
MAZDA	B30113Z40	214 × 157 × 45
MERCEDES BENZ	0020948704	407 × 326 × 84
MERCEDES BENZ	0020948804	407 × 326 × 64
NISSAN	1654689W00	250 × 200 × 71
NISSAN	16546S0100	262 × 200 × 61
NISSAN	16546U6710	286 × 232 × 60
RENAULT	7701349026	257 × 193 × 60
RENAULT	7701034872	265 × 208 × 64
RENAULT	7701047655	257 × 199 × 92
SUZUKI	1378078100	203 × 155 × 47
TOYOTA	1780187701	230 × 174 × 51
TOYOTA	1780113010	188 × 110 × 57

+ Read All - Read Less

LMI Type

Several set of LMI plastic molds and a PU air filter.

LMI Type

Remark: The follow information is for reference only. Please consult our sales staff for specific selection.

Brand	Original Part Number	LOD (mm)	LID (mm)	WOD (mm)	WID (mm)	H (mm)
MAZDA	E30123603	286	230	228	172	46
MITSUBISHI	MD603384	243	165	153	75	149
HUMMER	AF25322	243	140	163	60	93

LMS Type

A set of LMI plastic mold and a PU air filter.

LMS Type

Remark: The follow information is for reference only. Please consult our sales staff for specific selection.

Brand	Original Part Number	Dimension OD × ID × H (mm)
POLARIS	7081864	140 × 78 × 302
AUTO MAN	81083040093	249 × 119 × 500
MANN	C14200	124 × 74 × 320
MANN	C26980	251 × 159 × 480
MANN	C281275	281 × 200 × 563
MANN	C17337/2	163 × 95 × 355
MANN	C25730/1	249 × 119 × 383
MANN	C26980	249 × 170 × 479
MANN	81084050018/C261005	255 × 129 × 458
MANN	81084050026/C25860/1	248 × 150 × 415
MANN	81083040100/C271170	265 × 170 × 481
MANN	81084050021/C271250/1	267 × 170 × 511
MANN	81083040083/C301353	303 × 167 × 477
IVECO	93828280	174 × 104 × 395
IVECO	42471161	247 × 139 × 334
IVECO	1902486	160 × 100 × 236
IVECO	1902457	160 × 100 × 251
IVECO	41272124	313 × 205 × 461
Donaldson	P549523/P549530	307 × 172 × 457
VOLVO	RS3715	90 × 45 × 178
VOLVO	2992388	228 × 150 × 415
VOLVO	83084050001	250 × 170 × 479
VOLVO	21115483/ 21115501	184 × 174 × 387
VOLVO	1665898	328 × 199 × 428
VOLVO	7984940	289 × 208 × 588
VOLVO	20722726	310 × 179 × 463
TOYOTA	17741-23600-71	137 × 81 × 280
TOYOTA	RS3542	138 × 81 × 329
FORD	RS3501	135 × 94 × 305
ISUZU	1-14215204-0	280 × 176 × 466
MITSUBISHI	ME413501	280 × 150 × 370
MITSUBISHI	ME032781	236 × 132 × 406
MITSUBISHI	ME073160	235 × 131 × 413
FLEETGUARD	AF25767	240 × 147 × 539
FLEETGUARD	AF25704	246 × 125 × 443
FLEETGUARD	AF26199	231 × 150 × 415
FLEETGUARD	AF25139M	332 × 172 × 391
HINO	17801-2480	232 × 149 × 469
HINO	81084050018	255 × 130 × 458
HINO	81084050026	248 × 150 × 415
SCANIA	1510905	248 × 170 × 532
SCANIA	1485592	267 × 170 × 535
SCANIA	1387549	309 × 177 × 464
Carter	SEV551F/4	362 × 227 × 633
RENAULT	5001865723	310 × 180 × 463
RENAULT	5010230841	310 × 180 × 163
RENAULT	5010230916	310 × 180 × 553
RENAULT	3501843	126 × 86 × 311
DAF	1385791	244 × 125 × 343
DAF	1317409	281 × 150 × 483
DAF	1295090	281 × 150 × 525
DAF	1433690	215 × 116 × 336
DAF	1353115	281 × 150 × 507
DAF	1363023	267 × 170 × 420
