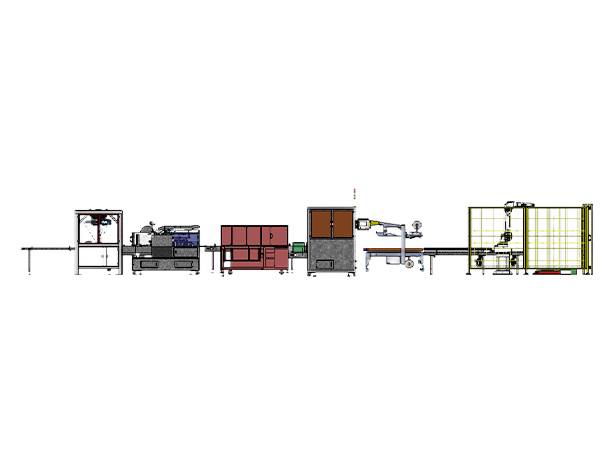

Cylindrical Oil Filter Automatic Boxing, Cartoning, and Palletizing Scheme

Main configuration

Main configuration

Technical Parameters

• Labeling speed: about 0 – 60 P/min (depending on the product and label size)
• Labeling accuracy: ± 1 mm (excluding product labeling and other errors)
• Applicable product size (L × W × H): 200 × 180 × 100 mm
• Applicable labeling range: length 10 – 100 mm, backing paper width 10 – 100 mm
• Maximum label supply: outer diameter of 300 or less, inner diameter of 76 mm
• Ambient temperature / humidity: 0-50 °C, 15% – 85%
• Voltage specification: AC 220 V, 50 Hz
• Size (L × W × H): 2200 × 1100 × 1500 mm
• Weight: about 170 kg
• Label parameter:
  • Label spacing: 2–3 mm ± 0.2 mm (roll material)
  • Material: It is recommended that the use of grapheme backing paper, backing paper to avoid cuts or cut marks, affecting the normal operation of the labeling

Open Box Molding Machine

• Power supply: 220 V 50 Hz 400 W
• Air pressure: 6 kg/cm²
• Gas consumption: 200 L/min
• Overall dimension (L × W × H): 2000 × 1950 × 1500 mm
• Machine weight: 400 kg
• Carton specification: can be customized according to customers' carton size.
• Tape width: 4.8 × 7.2 cm
• Molding speed: ≤10 boxes/minute (depending on carton size)
• Production efficiency of single machine: ≥ 95%.
• Carton loss: 1‰
• Carton opening mode: vertical molding
• Power supply: 220 V 50 Hz 400 W
• Electrical configuration:
  • PLC control: Germany "Siemens".
  • Contactors: France "Schneider".
  • Sensor: S+D
  • Push button switch: France "Schneider"
  • Human-machine interface: Xinje
  • Cylinder: Taiwan "Yadek".
  • Motor: Taibang
  • Power supply: 220 V 50 Hz 400 W
• Working process: suction box → unpacking box → folded front and back paper cover → folded left and right paper cover → seal the bottom
• Environmental conditions:
  • Humidity ≤ 98%
  • Temperature 0 – 40 ° C.

The whole machine features:

• Equipment design and production in line with the requirements of the production line process and plane layout, beautiful appearance, good manufacturing process
• Low electricity and water consumption, easy and quick operation, adjustment and maintenance
• The machine has good self-safety protection functions, such as overload protection and safety door, etc.
• Alarm function for no tape and no cardboard box.
• Storage mechanism: about 50 unformed cartons can be placed at a time (according to the thickness of the carton), and can be replenished at any time
• Power supply: 220 V 50 Hz 400 W

Crating Models

Connecting the front section of the equipment automatically conveying finishing to the cartoner conveyor belt, the machine is automatically arranged, neatly after the side of the carton pushed loading.

Configuration

Technical Data

• Power supply: 220 V / 50 Hz
• Power KW: 2.2 kW
• Speed: 1 – 5 case/Min
• Applicable paper tray: (L × W × H)
  • 395 × 170 × 141 mm
  • 360 × 150 × 123 mm
  • 400 × 170 × 150 mm
  • 360 × 156 × 150 mm
• Weight: About 1.2 ton
• Carton Requirements:
  • carton indentation: 1.0 mm deep
  • beveled corners cartons required

Automatic Folding Cover Sealing Machine

• Power supply: 220 V, 50 Hz, 200 W
• Working air pressure: 6 kg/cm²
• External dimensions (L × W × H): 1700 × 930 × 1510 mm
• Table height: 600 mm (adjustable)
• Carton specification: customized according to customers' carton
• Belt speed: 20 meters/minute
• Tape size: 48 mm or 55 mm
• Sealing tape: kraft tape, BOPP tape
• Electrical configuration
  • Contactor: France "Schneider"
  • Push button switch: "Siemens" APT
  • Pneumatic components: Taiwan "Airtac" / " SHAKO"

Machine performance

• Manual adjustment of height and width when changing specifications
• Transmission mode adopts the lower two sides of the belt drive.
• Line or stand-alone operation, automatic folding lid, upper and lower one line sealing completed at one time.
