Heavy-Duty Truck Air Filter Outer Mesh with High-Precision Spiral Forming

The heavy-duty truck air filter outer mesh is an essential component of heavy-duty truck air filter systems. It protects pleated filter media, stabilizes airflow, and prevents deformation under high dust loads, vibration, and intake pressure.

With stricter emission standards and increasing engine performance, manufacturers are shifting toward automated production to achieve higher strength, accuracy, and consistency in outer metal mesh structures.

Function of Outer Mesh

Heavy-duty air filters operate in harsh environments, including strong vibration, high dust concentration, powerful airflow, and long operating hours.

The outer mesh provides:

Structural support: Maintains the cylindrical shape of pleated filter media and ensures stable filtration performance.
Durability: Surface-treated metal mesh resists corrosion, abrasion, and temperature variation, extending filter service life.

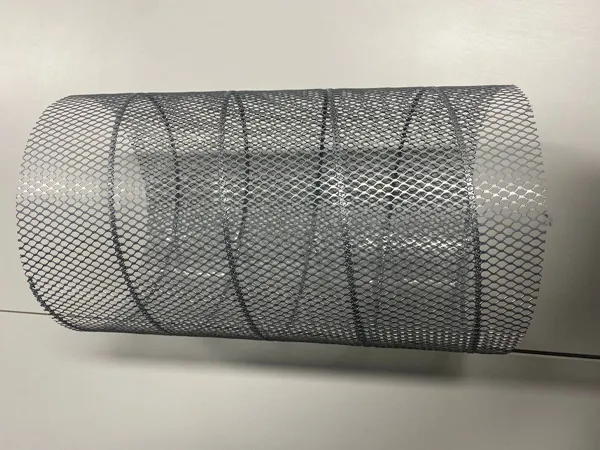

Finished heavy-duty truck air filter outer mesh placed on the ground.

Manufacturing Trends: Automation vs. Manual Winding

Manual or semi-automatic winding methods often result in inconsistent diameter, uneven pitch, weak seams, and higher defect rates.

Automated spiral rolling technology offers clear advantages:

Accurate control of diameter and spiral pitch
Integrated seam locking and cutting
Higher productivity with consistent quality
Reduced labor cost

Automation has become essential for meeting international OEM requirements for heavy-duty air filters.

Automated Solution: PLJY109-500A Spiral Net Machine

The PLJY109-500A is designed for high-precision production of heavy-duty truck air filter outer mesh.

Key specifications:

Mesh width: 109 mm
Mesh thickness: 0.4–0.8 mm
Finished diameter range: 80–450 mm

Key features:

Servo-controlled spiral forming for stable cylindrical shape
Automatic feeding and tension control for precise rolling
Seam locking and forming for improved durability
High-speed production suitable for OEM-scale manufacturing

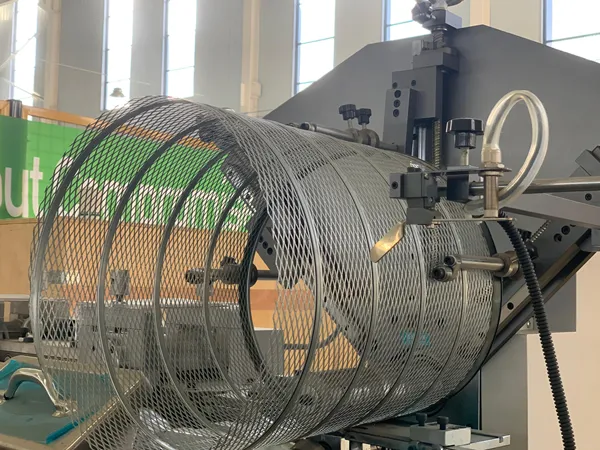

An automated spiral rolling machine producing heavy-duty truck air filter outer mesh.

Benefits for Manufacturers

By adopting automated spiral rolling equipment such as the PLJY109-500A, manufacturers can upgrade from manual production to automated, high-precision outer mesh manufacturing, improving efficiency, consistency, and overall product quality.

Heavy-duty truck air filter outer mesh plays a critical role in filter performance and service life. Automated spiral rolling technology, combined with proper material selection, ensures OEM-grade precision and durability, making it a key manufacturing trend in modern heavy-duty air filter production.
