PLM-BF-3015 Adjustable Outer Frame Forming Machine

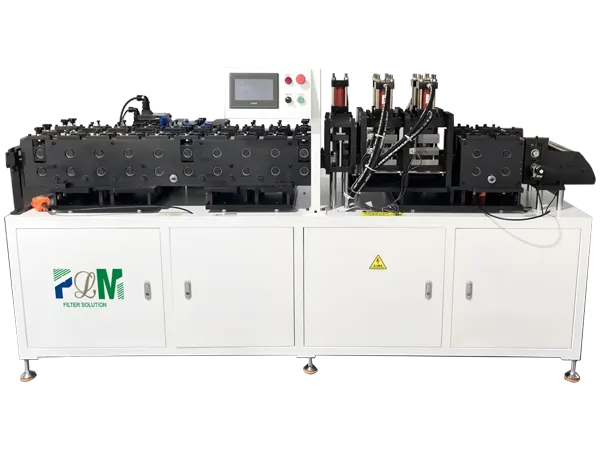

A set of PLM-BF-3015 adjustable outer frame forming machine.
Specification
Product Name PLM-BF-3015
Production capacity 150–200 sets/hour
Width range 30–145 mm
Total power 7.5 kW, three-phase 380 V, four-wire system
Features
  • Servo-controlled forming width adjustment with high precision
  • Accurate length control with tolerance within 1 mm
  • Servo-driven forming pressure rollers for high-speed operation
  • Simple and intuitive HMI control interface
  • Equipped with an automatic feeding rack
  • Built-in counting and detection functions
Applications

Mainly used for the forming of filter outer frames.

Video
Downloads

To protect the documents privacy, please contact us to get the download password: info@pmfiltersolution.com

PLM-BF-3015 Data Sheet
