PLM-YS-260 Media Cutting Machine

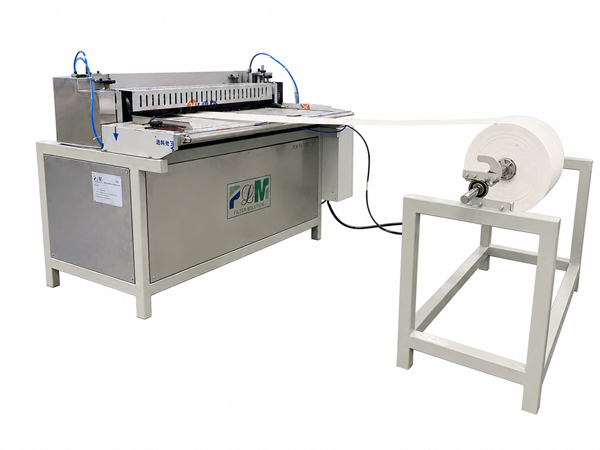

A set of PLM-YS-260 media cutting machine.
Specification
Product Name PLM-YS-260
Slitting Configuration 1 set, with 1 cross-cutting blade and 10 circular blades
Blade Length 1200 mm
Blade Material High-speed steel (HSS)
Cutting Thickness 10–70 mm
Cutting Motion Mechanical up-and-down motion
Cutting Speed 10–60 cuts/min
Machine Weight 700 kg
Main Motor Power 2.2 kW
Feeding Motor Torque 28 N·m
Feeding Speed 1–20 m/min
Machine Dimensions 2000 × 1300 × 1200 mm
Feeding Rack 1 set, included
Components
  • Cross-cutting system
  • Circular slitting system
  • Mechanical cutting mechanism
  • Material feeding system
  • Feeding rack
Features
  • Combines slitting and cross cutting in one machine.
  • Adjustable feeding and cutting speeds.
  • HSS blades provide clean and consistent cutting.
  • Suitable for 10–70 mm thick filter media.
Applications

Designed for slitting and cutting filter cotton for PU air filters, as well as nonwoven and other soft filter media.

Downloads

To protect the documents privacy, please contact us to get the download password: info@pmfiltersolution.com

PLM-YS-260 Data Sheet
