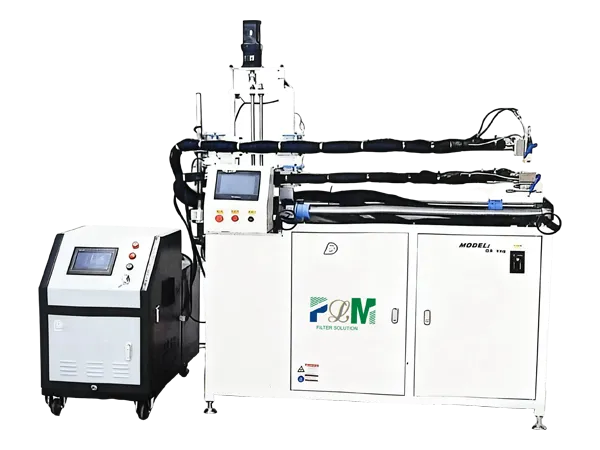

PLWS-950A HDAF Horizontal Gluing Machine

Specification

Product Name	PLWS-950A
Production Capacity	3–5 pcs/min
Applicable Filter Length	≤ 950 mm
Applicable Filter Diameter	φ 100–500 mm
Main Machine Power Supply	220 V / 50 Hz
Working Air Pressure	0.6 MPa
Hot Melt Applicator Power Supply	380 V / 50 Hz

Hot Melt Tank Capacity	10 kg
Heating Power	6 kW
Main Machine Power	1 kW
Main Machine Dimensions (L × W × H)	2700 × 500 × 1555 mm
Hot Melt Applicator Dimensions (L × W × H)	600 × 780 × 1325 mm
Machine Weight	450 kg

Features

Strong bonding. Hot melt glue lines securely fix the inner and outer mesh to the filter paper, even under high air pressure.
Low resistance. Precise glue lines prevent pleat adhesion, ensuring uniform airflow.
Flexible control. PLC and computer systems adjust glue pitch for spiral or ring patterns.
Dual modes. Supports automatic or manual operation.
Independent or simultaneous gluing. Inner and outer circles can be glued separately or together.
Stable performance. Electric adjustment ensures smooth motion and consistent glue output.

Application

Ideal for producing round and conical heavy-duty air filters used in trucks, construction machinery, and industrial filtration systems.
