Automatic Cabin Filter Production Line: What Affects Performance

In terms of appearance, many automatic cabin filter production lines are nearly identical, featuring similar frames, conveyors, pleating sections, side-bonding stations and cutting units. However, after months of continuous operation, clear performance differences emerge: one line maintains dimensional accuracy and a stable production rhythm, while another requires frequent adjustment, produces inconsistent edge bonding or experiences unexpected downtime. These differences are determined not by external appearance, but by component quality, machining accuracy, assembly precision, system synchronization and technical support.

For small-volume production, separate machines and manual transfers may provide sufficient flexibility. As output increases, however, each transfer between pleating, stacking, side bonding and cutting adds waiting time and operator dependency. Pleated media may be stretched or compressed, edge strips may shift, and cut length may vary between batches.

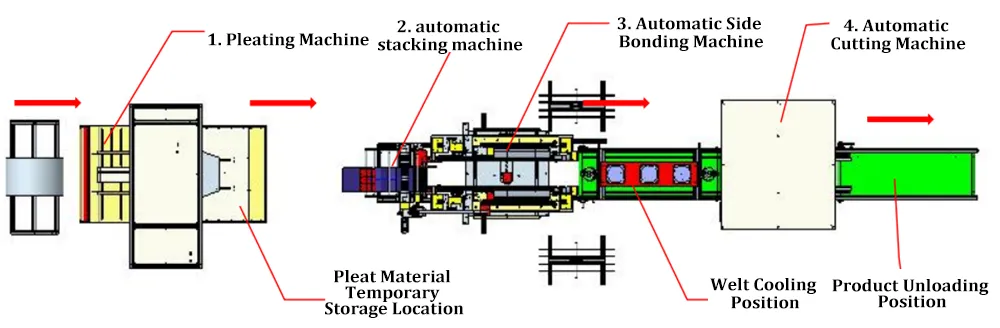

The PLM-ZD-1 integrates these key processes into one coordinated production workflow:

Pleating & Forming → Stacking → Side Bonding → Cutting → Unloading

This continuous workflow reduces material handling, establishes a more stable production rhythm and improves production consistency across operators and shifts.

• Key components. Servo systems, motors, bearings, guide components, sensors, pneumatic components and temperature-control devices directly influence positioning accuracy, response speed and repeatability. Even with similar layouts, long-term performance can vary significantly when critical components are selected mainly to reduce the initial cost.
• Machining and assembly quality. Frame rigidity, shaft accuracy, guide-surface machining and module alignment determine whether the line remains stable under continuous operation. A well-finished enclosure cannot compensate for poor alignment or insufficient structural strength.
• Precision under continuous operation. Accuracy should be evaluated after sustained operation, not only during a short trial. Pleat geometry, stacking stability, edge-strip positioning, bonding quality and cut length should be assessed together, because instability in one module can affect every subsequent process.
• Service life and total cost of ownership. The lowest purchase price does not always mean the lowest overall cost. Frequent realignment, hard-to-source spare parts, repeated downtime and inconsistent output can quickly increase labor, waste and delivery risk. A reliable line should maintain consistent product quality over time and remain practical to service.

Is the PLM-ZD-1 the Right Fit for Your Factory

The PLM-ZD-1 is designed for cabin filter manufacturers with recurring orders that need to reduce manual handling. It is particularly suitable for factories facing inconsistent product dimensions, unstable side bonding, increasing labor pressure or limited capacity caused by disconnected machines.

It can also support new projects with a clearly defined product range and production target. For factories still testing the market or frequently changing product specifications, we can assess whether a semi-automatic or phased automation solution would offer a better return.

• PLM-ZD-1 Reference Specifications
  • Main modules: Cabin filter pleating machine, automatic stacking machine, automatic side-bonding machine, and automatic cabin filter cutting machine.
  • Applicable product dimensions (L × W × H): 150 × 130 × 15 mm to 600 × 350 × 50 mm.
  • Reference output: 200 pcs/h for a 350 × 350 × 30 mm product.
  • Approximate line dimensions (L × W × H): 10,000 × 2,200 × 2,000 mm.

We develop the line configuration and review component selection, mechanical alignment and process parameters as one integrated system based on your filter design, materials and target output. Our support also covers process review, layout planning, factory acceptance testing (FAT), installation, operator training and spare-parts guidance. During project confirmation and FAT, agreed production criteria can be verified using your materials or technically equivalent samples.

Send us your filter dimensions, filter media, edge-strip material, target output and current production process. We will help you determine whether the PLM-ZD-1 or a phased automation solution is the better fit for your factory.
