Progressive Die

Progressive die is a highly efficient stamping tool widely used in the filter manufacturing industry. Inside the die, multiple stations work step by step to gradually punch and form steel sheets or other metal materials into the required parts. Using coil-fed steel strips as raw material, together with feeding systems and presses, progressive dies enable automatic, high-speed, and stable production. Each stroke can produce one or more finished parts, greatly improving efficiency.

Our PLJM series progressive dies cover a wide range of filter parts and special-shaped components, designed for different specifications, thicknesses, and materials.

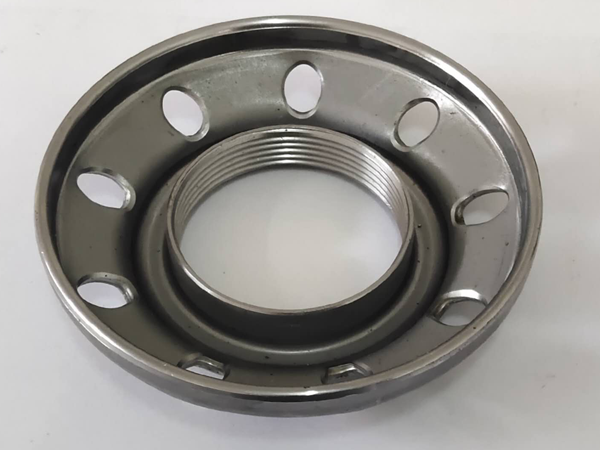

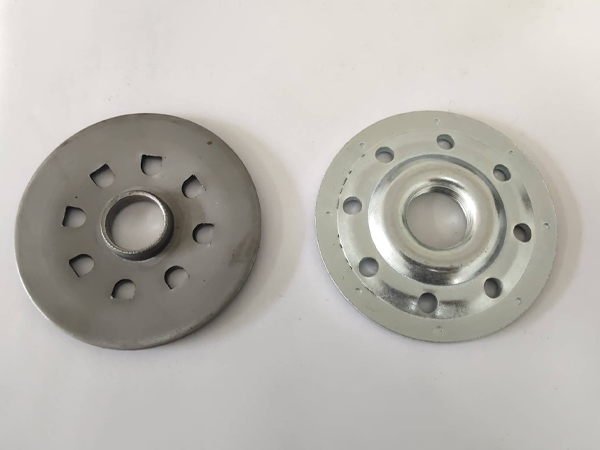

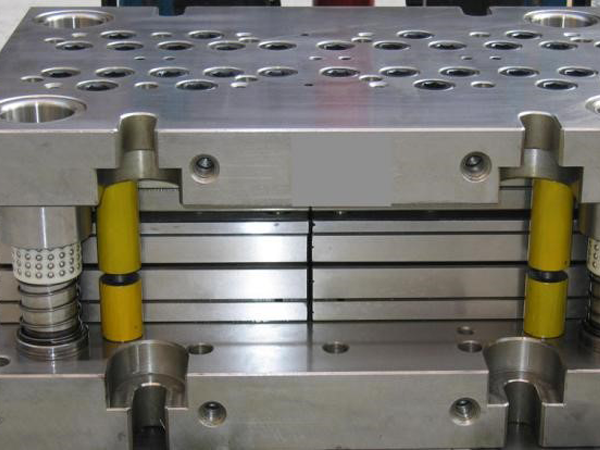

PLJM-LB-1 | Screw Plate Progressive Die

• Diameter: Ø50 – Ø180 mm
• Material Thickness: 2–8 mm
• Materials: Carbon steel, galvanized steel sheet
• Output: 1–3 parts per stroke, 30–90 pcs/min
• Application: For producing threaded screw plates of filters

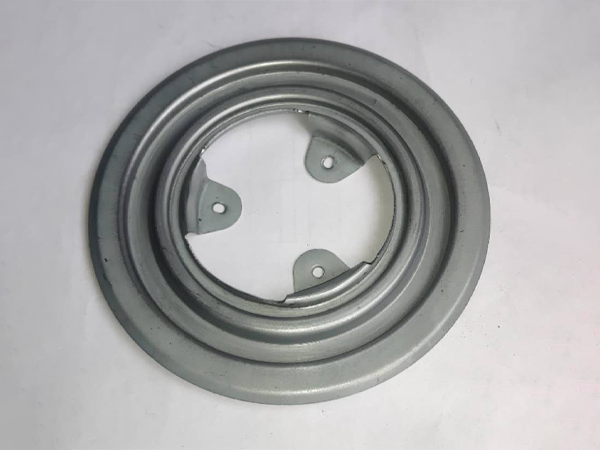

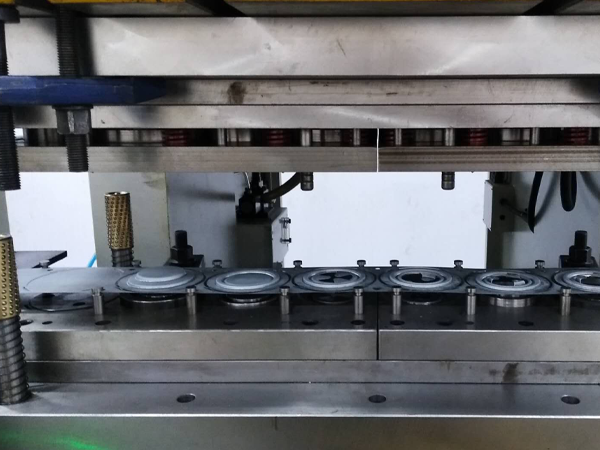

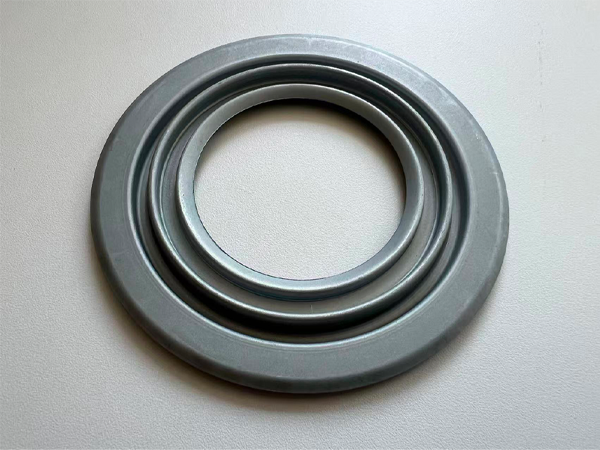

PLJM-MB-1 | Sealing Plate Progressive Die

• Diameter: Ø50 – Ø200 mm
• Material Thickness: 0.5–1.5 mm
• Materials: Carbon steel, galvanized steel sheet
• Output: 1–3 parts per stroke, 30–90 pcs/min
• Application: For producing sealing plates of filters

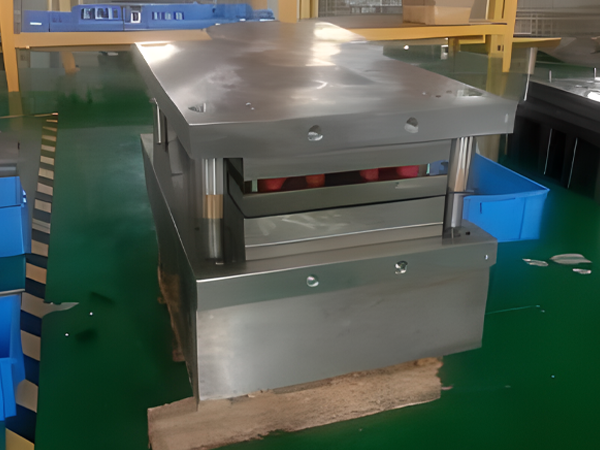

PLJM-DG-1 | Filter End Cap Progressive Die

• Diameter: Ø50 – Ø180 mm
• Material Thickness: 0.5–1.5 mm
• Materials: Carbon steel, galvanized steel sheet
• Output: 1–3 parts per stroke, 30–90 pcs/min
• Application: For producing complex oil filter end caps

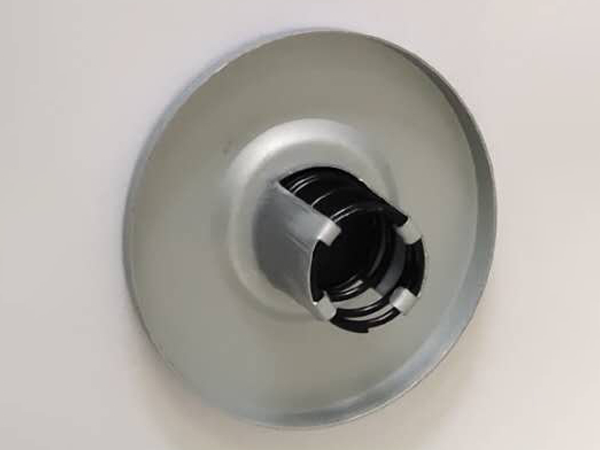

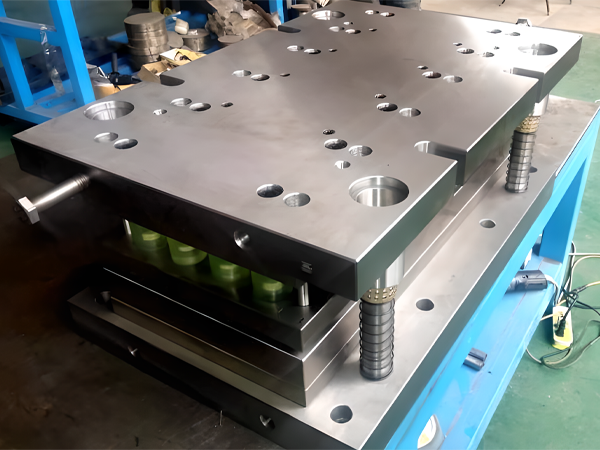

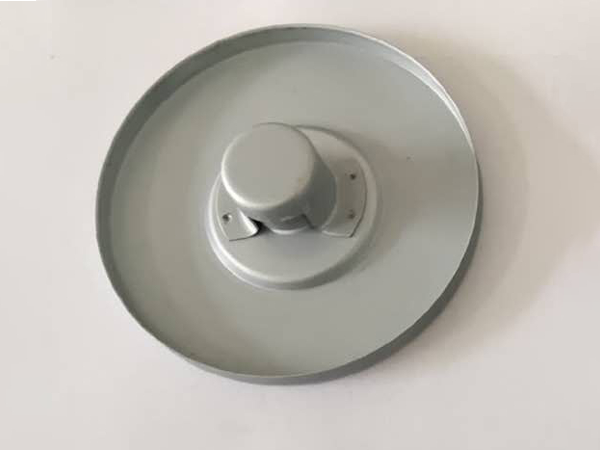

PLJM-PF-1 | Filter Bypass Valve Progressive Die

• Type: Riveted type, welded type
• Material Thickness: 0.5–1.5 mm
• Materials: Carbon steel, galvanized steel sheet
• Output: 1–3 parts per stroke, 30–90 pcs/min
• Application: For producing bypass valves in filter elements

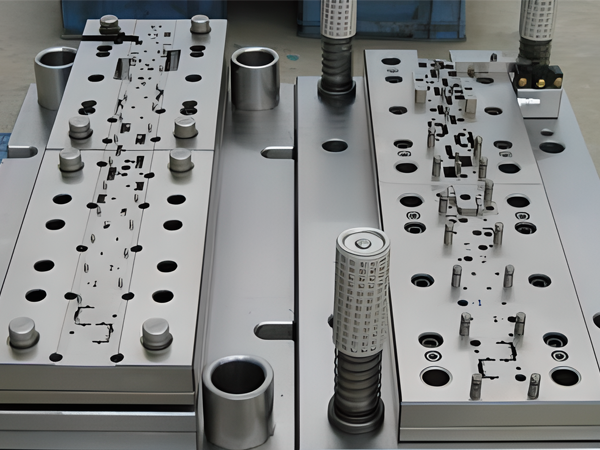

PLJM-YX-1 | Special-Shaped Component Progressive Die

• Material Thickness: 0.5–10 mm
• Materials: Carbon steel, galvanized steel sheet
• Output: 1–3 parts per stroke, 30–90 pcs/min
• Application: For producing various non-standard, special-shaped metal parts

Thank you for your interest in the PLJM series progressive dies! Our solutions cover filter components and customized parts, supporting different sizes, thicknesses, and materials. With high efficiency and stable quality, we help you optimize production.
