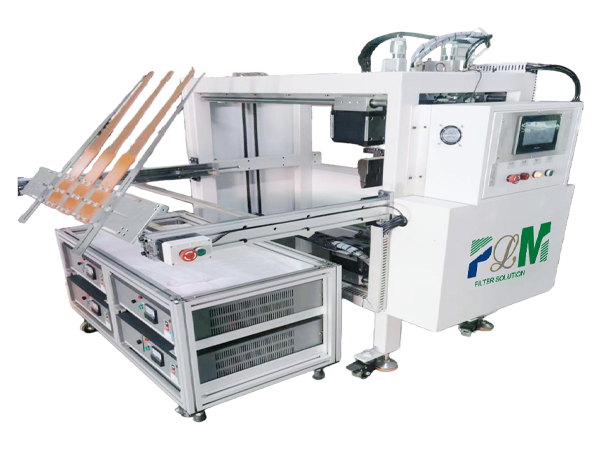

PLM-NHJ1000 Trapezoidal Inner Bag Welding Machine

Specification

Product Name	PLM-NHJ1000
Production Capacity	120–200 pieces/min (depending on mold length)
Air Cylinder	AirTac
Inner Liner Bag Sizes	Various sizes, adjustable by changing molds

Ultrasonic Welding	1 set, 18 kW/2200 W
Operation	Stable and easy to operate
Design Features	High efficiency, compact size, and zero-waste production

Features

Intelligent welding modes. Supports single-step and continuous welding; adjustable 1–10 weld passes; ultrasonic and pneumatic cylinders can be individually switched off for precise alignment, minimizing material waste.
Multi-ultrasonic system. Four high-power ultrasonic units ensure strong, leak-proof welds for multi-layer filter materials, meeting complex trapezoidal bag requirements.
High-precision drive control. Delta servo system (Taiwan) with SMC pneumatic cylinder ensures precise, stable welding movements, high repeatability, and consistent product quality.

Application

Trapezoidal filter bag liner welding: Specifically designed for the welding production of trapezoidal filter bag liners.
