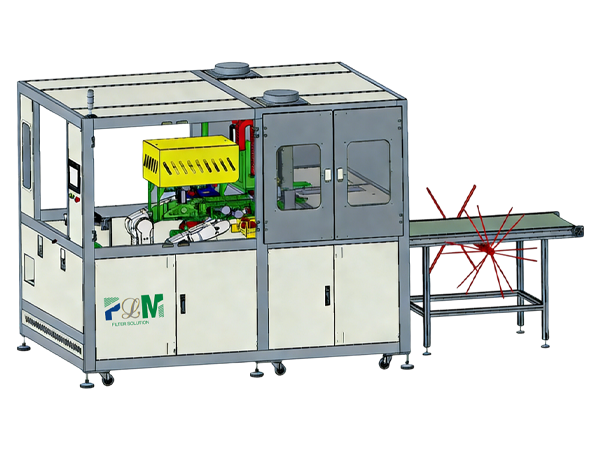

PLM-TB-4S Automobile Air Conditioning Filter Paste Four-Side Production Line

Specification

Product Name	PLM-TB-4S
Applicable Product Size (L × W × H):	150–400 × 150–300 × 10–60 mm
Adhesive Coating Width	10–60 mm
Coating Type	Double-side, Four-side
Efficiency	Double-side: 12–15 s /piece, four-side: 19–23 s /piece

Molds	2 sets
Power	220 V, 10 kW
Air Pressure	0.6–0.8 MPa
Machine Size	3920 × 1792 × 2065 mm
Robotic Arms	All parameters are adjustable

Features

Double-Side & Four-Side Coating. Supports double-sided and four-sided adhesive pasting for cabin air filters.
High Efficiency & Stable Output. 12–15 s/piece (double-side) and 19–23 s/piece (four-side) processing time.
Flexible Size Adaptation. Supports product sizes L 150–400 mm × W 150–300 mm × H 10–60 mm, with a coating width 10–60 mm.
Robotic Arm Control with Adjustable Parameters. Robotic arms ensure precise positioning and smooth adhesive application with adjustable parameters.

Applications

The machine is mainly designed for cabin air filters after folding and forming, applying hot-melt adhesive-coated non-woven fabric strips.

Downloads

To protect the documents privacy, please contact us to get the download password: info@pmfiltersolution.com
