PU Air Filter Production Process and Key Quality Control Points

Understanding the production process is essential for manufacturers entering the automotive PU air filter industry. While the workflow is relatively straightforward, different stages have varying impacts on final product performance. Among them, pleating and PU dispensing are the most critical processes, as they directly influence filtration efficiency, sealing quality, and overall product consistency.

A typical PU air filter production process includes seven main stages, from filter media preparation and pleating to cutting, PU dispensing, curing, trimming, and final inspection. While each step contributes to the final product, consistent control of key processes is essential to ensure stable quality and reliable performance.

• Step 1: Filter Media Preparation

  The production process begins with the preparation of filter media. At this stage, proper material handling is essential to ensure:

  • Stable product structure
  • Consistent pleating performance
  • Reliable downstream processing

  Effective preparation helps reduce material waste and improves overall production stability.

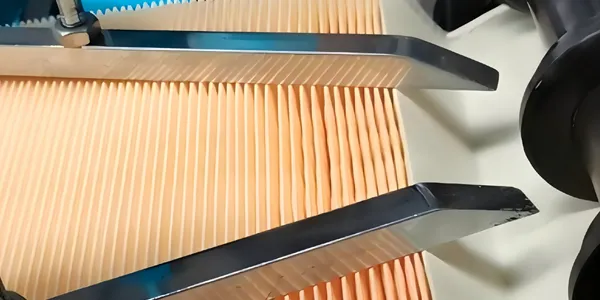

• Step 2: Pleating

  Pleating is one of the most critical processes in PU air filter production. This stage directly determines key performance factors, including:

  • Effective filtration area
  • Airflow performance
  • Dust holding capacity
  • Product appearance consistency

  Instability in the pleating process may result in:

  • Irregular filter geometry
  • Reduced filtration efficiency
  • Difficulties in subsequent assembly and sealing

  Stable pleating is fundamental to ensuring consistent product quality and overall filter performance.


• Step 3: Cutting and Shaping

  After pleating, the filter media is cut and shaped according to product specifications. This step ensures:

  • Accurate dimensional control
  • Consistent product format
  • Proper alignment with the PU sealing structure

  Although this process is relatively simple, it plays an important role in maintaining overall product consistency and assembly accuracy.

• Step 4: PU Dispensing

  PU dispensing is the most critical process in the PU air filter production cycle. In this stage, polyurethane material is precisely applied to form the sealing structure, directly determining final product performance. This process directly affects:

  • Sealing performance
  • Product appearance
  • Dimensional consistency
  • Structural stability

  If the dispensing process is unstable, it may lead to:

  • Uneven gasket formation
  • Poor sealing performance
  • Product deformation
  • Quality inconsistency and potential customer complaints

  For automotive PU air filters, dispensing precision is a key factor in ensuring product reliability and long-term performance stability.


• Step 5: Curing

  After dispensing, the PU material must be properly cured to ensure the sealing structure achieves the required strength and stability. Proper curing helps maintain:

  • Gasket integrity
  • Product durability
  • Stable final shape
• Step 6: Trimming and Finishing

  After curing, the product proceeds to trimming and finishing. This step is carried out to improve:

  • Product appearance
  • Dimensional accuracy and neatness
  • Final consistency prior to inspection
• Step 7: Inspection and Output

  Before packaging or shipment, each finished product must be inspected to ensure compliance with quality requirements. Key inspection criteria include:

  • Stable filter geometry
  • Consistent PU sealing quality
  • Clean and qualified final appearance

  Reliable inspection is essential for maintaining consistent production quality and ensuring product reliability before delivery.

In PU air filter manufacturing, production quality is highly dependent on process consistency and equipment stability. Modern equipment enables manufacturers to achieve:

• Stable pleating performance
• Precise PU dispensing control
• Reduced labor dependency
• Improved production efficiency

For automotive filter manufacturers, selecting appropriate equipment is a critical step toward establishing a stable, scalable, and high-quality production process.

For manufacturers entering the automotive air filter industry, understanding the production workflow is only the first step. The real challenge lies in controlling the critical processes that determine product performance, consistency, and long-term reliability.

If you are looking to develop a reliable PU air filter production solution for your factory, feel free to consult our engineering team or learn more here: PU Air Filter
