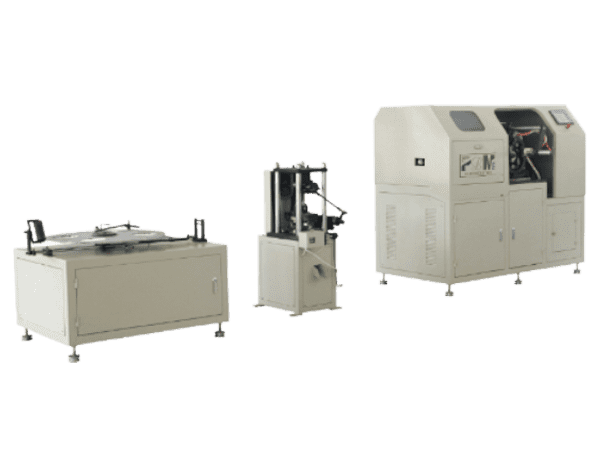

PLJY-75 Full-auto Spiral Center Tube Making Machine

Specification

Product Name	PLJY-75
Product Capability	20–35 pcs/min
Diameter of Center Tubes	30–75 mm
Length of Center Tubes	Free mm
Steel Plates Thickness	10–35 mm
Steel Strips Thickness	0.25–0.32 mm
Steel Strips Width	12 mm

Motor Power	3 kW
Power Supply	380/50 V/Hz
Working Air Pressure	0.6 MPa
M/C Weight	800 kg
Size of Main Machine (L × W × H)	1600 × 800 × 1240 mm
Size of Paper Decoiler (L × W × H)	1200 × 800 × 760 mm

Features

The machine can easily change the diameter of screw tube in a short time.
Cut the needed length according to what the customers' specifications.
Can adjust the clutch according to different thickness of the steel strip.
The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
Adopts hydraulic pressure drive, which has strong power and good stable.

Applications

The machine is technically used in manufacturing the center tubes of the auto. Oil and fuel filters. Furthermore, the perforated/round hole spiral tube can be made as well.
