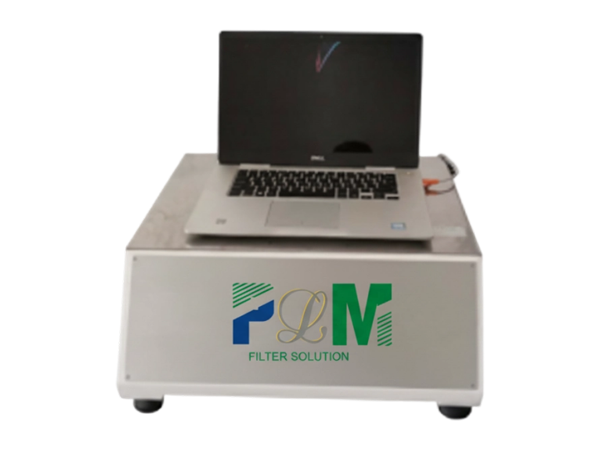

PLKFJ-200A Fully Automatic Pore Size Distribution Tester

Specifications

Product Name	PLKFJ-200A
Working Medium	Compressed air/cylinder gas; (Customer-supplied)
Maximum Flow Rate (L/min)	40
Working Pressure (bar)	0–8; (0–10) optional
Voltage (V)	220 50 Hz
Ambient Temperature (°C)	4–40

Gas source Interface (mm)	6
Test Method	Bubble point method (gas-liquid displacement)
Measurement Range	0.10–100 μm (ethanol) (Measurement range varies slightly depending on the wetting agent)
System Configuration	One pore size analyzer main unit, one computer and printer, one set of data processing software
Test Components	Sheet, tubular, multi-channel fixtures (choose one set, others can be added), one vacuum wetting instrument (optional)
Data Connection Port	USB/232

Features

Precise measurement range. The measurement range is 0.10–100 μm and can be slightly adjusted depending on the wetting agent and filter media.
Easy operation and system configuration. The machine includes a computer, printer, and data software for easy operation and data analysis.
Diverse test component selection. Supports various test fixtures (plate, tubular, multi-channel), and an optional vacuum humidifier can be added to improve testing results.

Application

Used for testing and optimizing the pore size distribution of filter media.
